Handheld Pulse Plastic Heat Staking Machine Hot Riveting Plastic with Type E、 Type K

SUZHOU MEIHAO HEAT STAKING TECHNOLOGY CO.,LTD.
Contact Now

Handheld Pulse Plastic Heat Staking Machine Hot Riveting Plastic with Type E、 Type K

  • 1
  • 2
  • 3

Brand Name : meihaowelder

Model Number : HN-300-SC

Place of Origin : suzhou china

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000 sets / month

Delivery Time : 5-8 work days

Packaging Details : Customized 7-ply heavy-duty cardboard box , 500*350*370mm

Rated voltage : AC 200V~240V 50Hz

Output voltage : AC 5V

Rated power : 300W

Thermocouple type : Type E、 Type K

Communication Interface : RS-485、 Ethernet

Number of program groups : 5 groups

Number of temperature segments : 4 segments

Parameter password protection function : Yes

Parameter display and setting : 7 inch true color touch screen

weight : 14KG

Contact Now

Handheld pulse plastic heat staking machine

A handheld pulse plastic heat staking machine refers to a portable device used for the process of pulse heat staking. Here are some details about this type of machine:

1- Rapid Heating: The impulse riveting process employs an efficient heating mechanism that quickly raises the temperature to the desired level. This rapid heating ensures that the components reach the optimal joining temperature promptly.

2- Instant Cooling: Following the heating phase, the impulse riveting system incorporates an instant cooling mechanism. This allows for rapid cooling of the joined components, solidifying the connection and improving production efficiency by minimizing cooling time.

3- PID Closed-Loop Control: The impulse riveting system utilizes a PID (Proportional-Integral-Derivative) closed-loop control algorithm. This algorithm continuously monitors and adjusts the heating and cooling parameters based on real-time feedback. It ensures precise control over the temperature and timing of the process, resulting in consistent and reliable riveting quality.

4- Portability: The machine is designed to be handheld, allowing for easy maneuverability and flexibility during the heat staking process. It is compact and lightweight, providing convenience and ease of use for operators.

Model HN-300-SC
Rated voltage AC 200V~240V 50Hz
Rated power 300W
Heat staking technique Pulse heat staking
Heating temperature set range 50~600℃
Thermocouple Type E, Type K
Communication interface RS-485/Ethernet
Number of program groups 5 groups
Number of temperature segments 4 segments
Parameter password Yes
Cooling method Air cooling
Attention: Parameter changes caused by product upgrades or other factors will not be notified separately. The physical product shall prevail. Hereby declared!

The plastic material and degree of difficulty for pulse plastic heat staking

Serial Number

Material Name

Difficulty of Heat Staking

1 ABS easy
2 ABS+PC easy
3 AES easy
4 AS easy
5 ASA easy
6 PA6 generally
7 PA66+GF30 generally
8 PBT easy
9 PBT+GF30 generally
10 PC easy
11 PE easy
12 PET generally
13 PMMA easy
14 POM easy
15 PP easy
16 PPO easy
17 PPS+GF30 generally

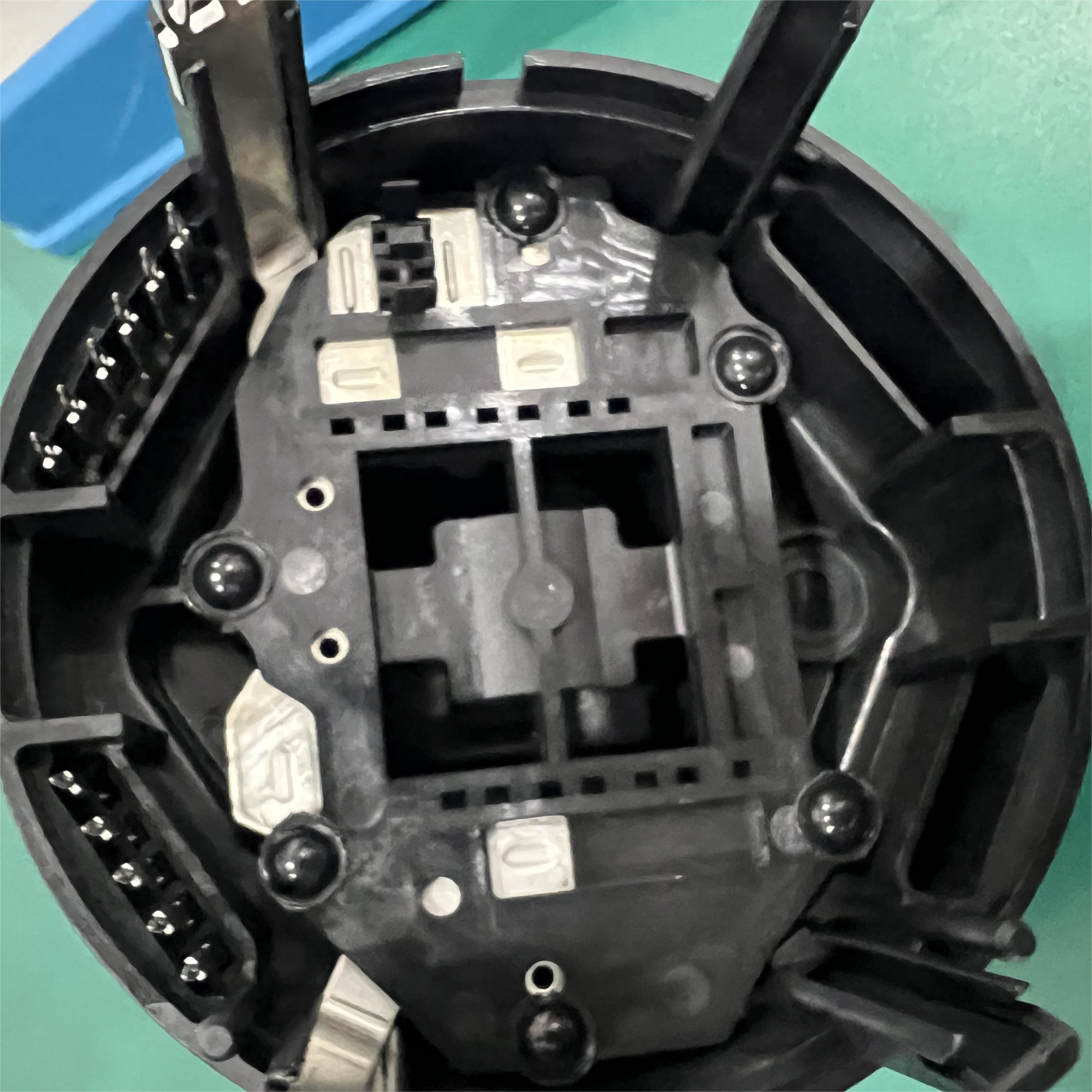

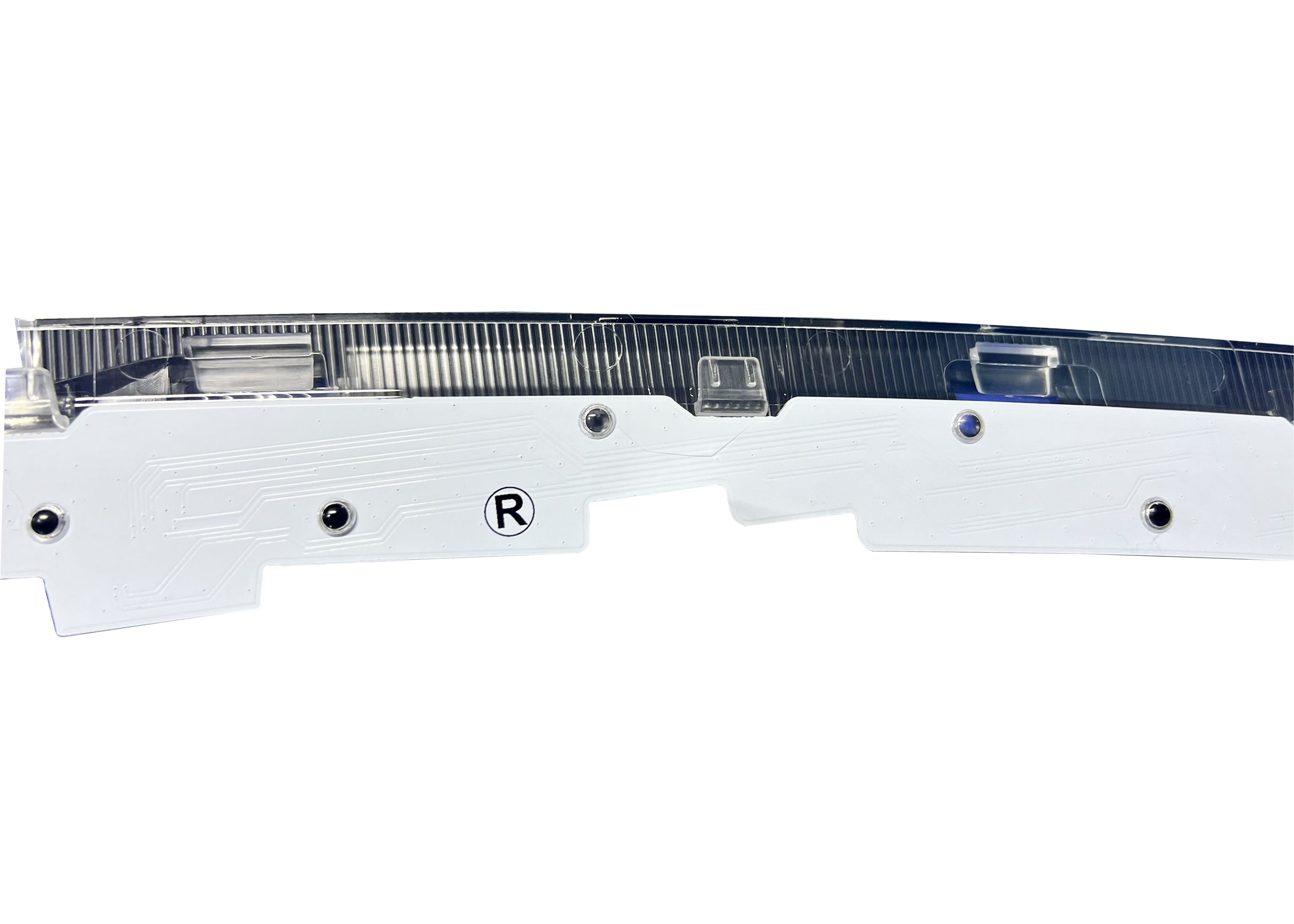

These are the heat staking outcome diagrams of the product:

Handheld Pulse Plastic Heat Staking Machine Hot Riveting Plastic with Type E、 Type KHandheld Pulse Plastic Heat Staking Machine Hot Riveting Plastic with Type E、 Type KHandheld Pulse Plastic Heat Staking Machine Hot Riveting Plastic with Type E、 Type K

Company Profile :

Established in 2009, SUZHOU MEIHAO HEAT STAKING TECHNOLOGY CO.,LTD. is a professional company engaged in the research, development, production, sales, and service of plastic heat staking equipment. With over 14 years of industry experience, we are committed to providing high-quality heat staking equipment to our customers. Our products have gained significant market share domestically and are exported to multiple countries worldwide.

Our primary product lines include pulse plastic heat staking equipment, plastic hot air cold staking equipment, and pulse heat press welding equipment. These equipment are widely utilized in industries such as automotive, electronics, and household appliances. With a professional R&D team, we prioritize technological innovation and product optimization within the industry. We continuously innovate and improve our equipment to meet the evolving needs of our customers.

If you require a custom-made product, please contact us first to obtain detailed information.

FAQ:

Q1: What are your competitive advantages?
A1: With over 14 years of experience, we are industry leaders in various aspects. Additionally, we are direct manufacturers for all our products, ensuring that you can purchase the products you need at the most competitive prices.

Q2: How do you ensure product quality?
A2: For exclusive and customized designs, we first produce samples for testing, ensuring that they meet customer satisfaction before proceeding to mass production. All products undergo strict testing procedures and are only packaged and shipped after passing quality assessments.

Q3: What post-sales services do you offer?
A3: Upon receiving the products, our dedicated team of professionals provides remote assistance to guide you through the installation and utilization of our products.

If you have any requirements or inquiries regarding our products or services, please feel free to contact us. We look forward to collaborating with you to create a bright future together.
