Manual Desktop Plastic Hot Staking Machine for Plastic Component Assembly

Name: Manual Desktop Plastic Hot Staking Machine for Plastic Component Assembly
Brand: meihaowelder
Price: 1 USD

China Manual Desktop Plastic Hot Staking Machine for Plastic Component Assembly factory

Brand Name : meihaowelder

Model Number : Manual Desktop Plastic Hot Staking Machine

Place of Origin : suzhou china

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000 sets / month

Delivery Time : 5-8 work days

Packaging Details : Customized 7-ply heavy-duty cardboard box , 500*350*370mm

Pulse controller : HN-300, HN-1000, HN-3000

Rated voltage : AC 200V~240V 50Hz

Rated power : 300W, 1000W, 3000W

Heating temperature set range : 50~600℃

Push down action : Manual downward pressing

Pressure adjustment method : Adjusting the spring pressure

Application : Plastic component assembly

Installation method : Desktop

Contact Now

Manual Desktop Plastic Hot Staking Machine for Plastic Component Assembly

The Manual Desktop Plastic Hot Staking Machine is a versatile assembly equipment designed specifically for fastening and joining plastic components. It is a reliable and efficient solution for various applications that require secure and durable connections.

Equipped with advanced heat staking technology, this machine offers precise control and consistent results. Heat staking is a process that involves localized heating of plastic components followed by rapid cooling to create a strong and permanent bond. The manual operation allows operators to have full control over the heat staking process, ensuring accuracy and adaptability to different assembly requirements.

Specification Table of Manual Desktop Heat Staking Device

Product name	Manual Desktop Plastic Hot Staking Machine
Pulse controller	HN-300, HN-1000, HN-3000
Rated power	300W, 1000W, 3000W
Rated voltage	AC 200V~240V 50Hz
Heating temperature set range	50~600℃
Number of heat staking head installations	1
Installation method	Desktop
Work station movement	Push and pull manually
Push down action	Manual downward pressing
Pressure adjustment method	Adjusting the spring pressure
Cooling method	Air cooling
Heat staking technique	Pulse heat staking
Dimensions (mm)	176x250x398
Weight	3kg ( Net weight excluding wiring )
Attention: Parameter changes caused by product upgrades or other factors will not be notified separately. The physical product shall prevail. Hereby declared!

The machine is equipped with user-friendly controls and intuitive interfaces, enabling operators to set and adjust parameters such as heating time, temperature, and cooling duration according to specific application needs. This flexibility ensures optimal heat staking results for a wide range of plastic components.

With its precise heating and cooling capabilities, the Manual Desktop Plastic Hot Staking Machine achieves consistent and high-quality staking results. It offers a cost-effective and efficient solution for plastic component assembly, eliminating the need for additional fasteners or adhesives.

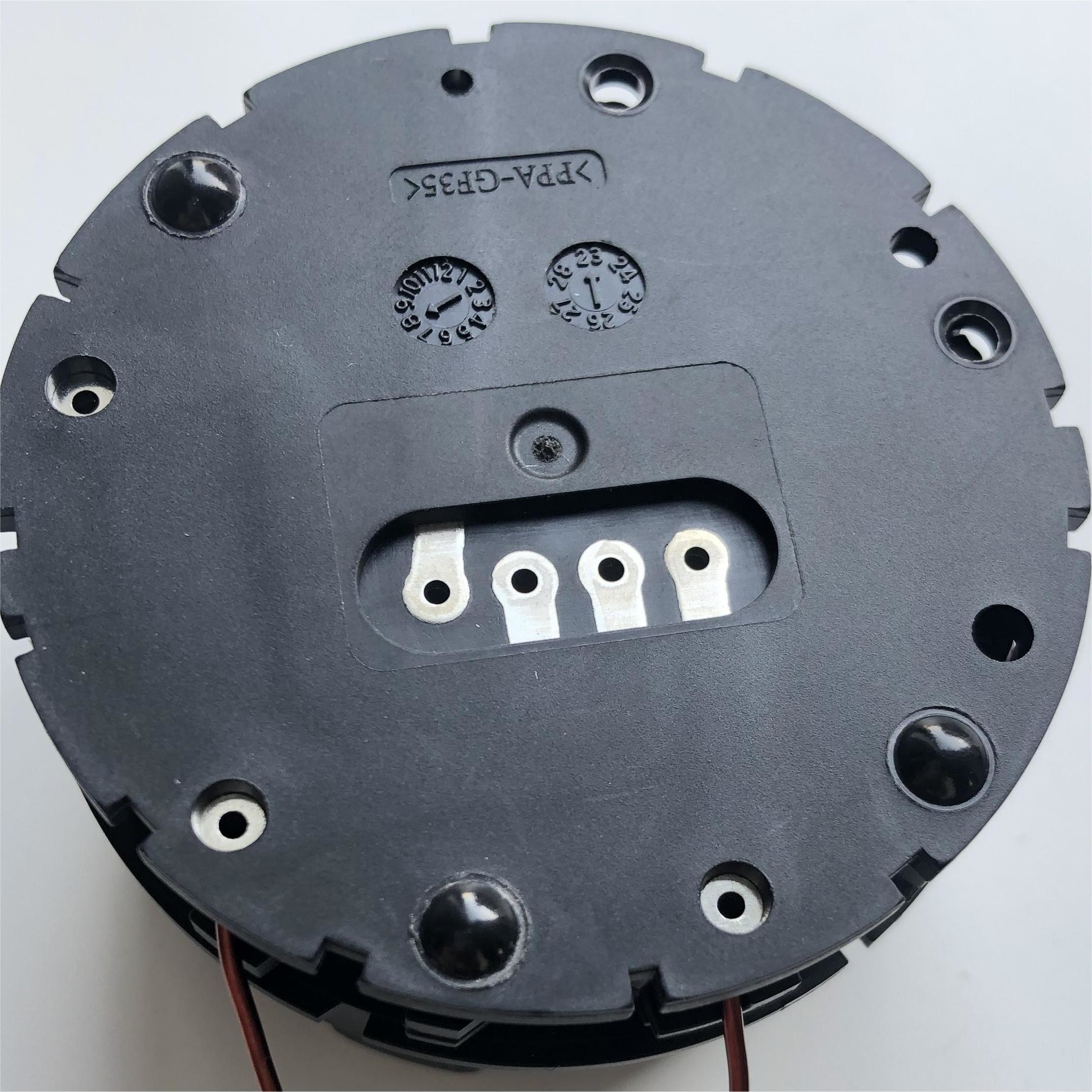

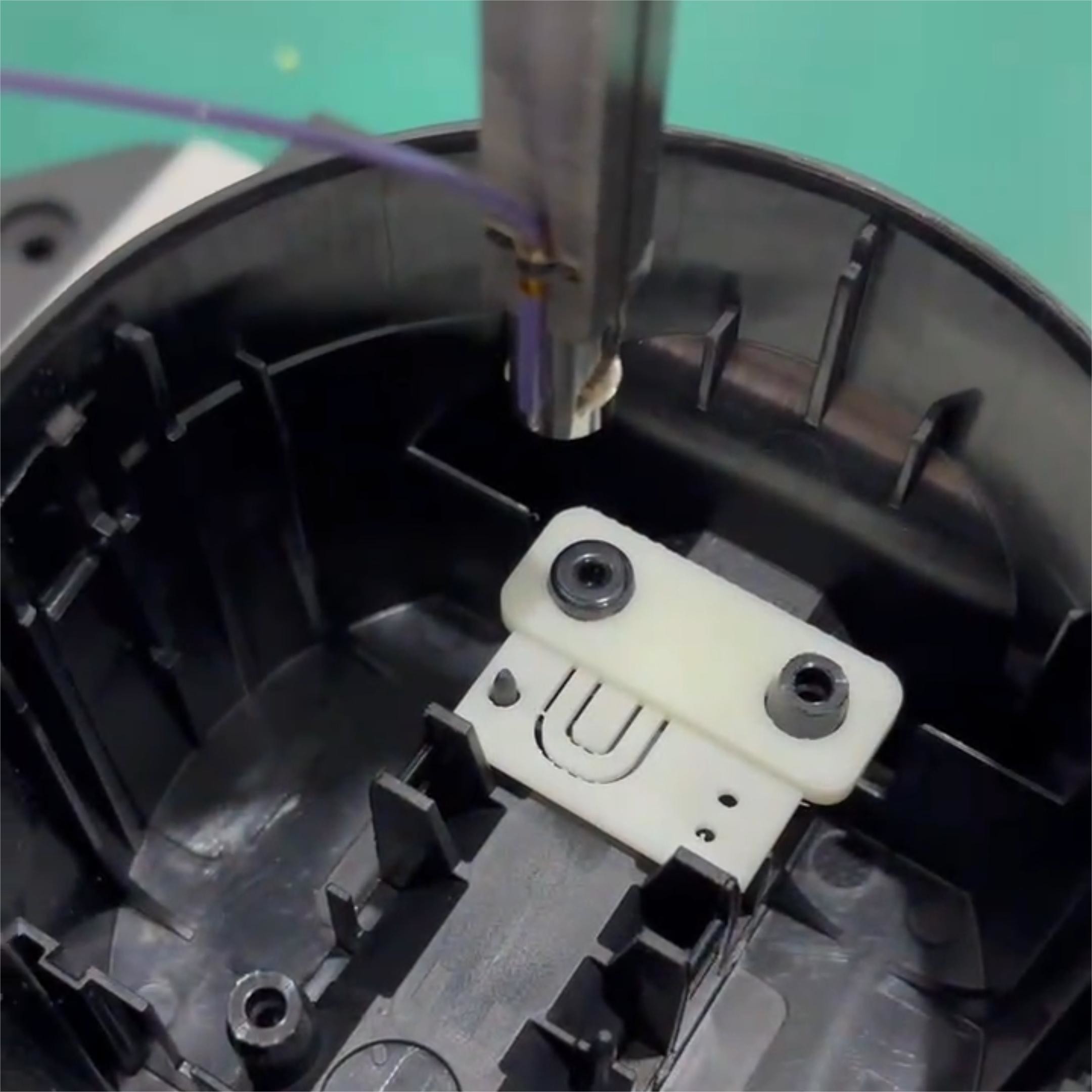

Examples of Manual Desktop Plastic Hot Staking Machine Applications

Manual Desktop Plastic Hot Staking Machine for Plastic Component Assembly Images
