Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

SUZHOU MEIHAO HEAT STAKING TECHNOLOGY CO.,LTD.
Contact Now

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

Brand Name : meihaowelder

Model Number : HN-3000

Place of Origin : suzhou china

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000 sets / month

Delivery Time : 5-8 work days

Packaging Details : Customized 7-ply heavy-duty cardboard box , 500*350*370mm

Application Example : Soldering FPC or FFC onto PCB

Increased Production Efficiency : Incorporating PID closed-loop control algorithm technology, the system enables rapid heating and cooling cycles, facilitating quick heat transfer and cooling

Superior Welding Quality : Utilizing the hot bar reflow soldering process ensures even heating and stable welding, resulting in consistent and high-quality soldering

Integration Capability : The controller is compatible with integration into other equipment, facilitating streamlined operations for large-scale production.

Contact Now

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

The Hot Bar Soldering Controller is primarily utilized for hot bar reflow soldering of components such as FPCs, FFCs, and wire harnesses. It finds wide application in the production of consumer electronics, including mobile phones, cameras, headphones, USB devices, as well as automotive electronics and medical equipment. Common applications involve soldering FPCs, FFCs, wire harnesses, electronic sensors, and other components onto PCBs.

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

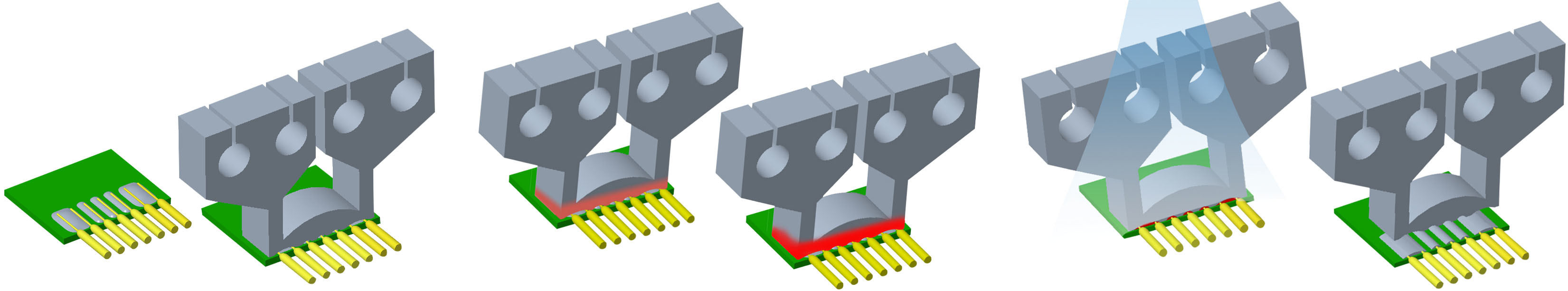

Hot bar reflow soldering, also known as pulse-heated reflow soldering, employs the Joule heat generated by pulse current passing through high-resistance materials like molybdenum and titanium for soldering purposes. During hot bar reflow soldering, pre-applied flux and tin-plated parts (such as FFCs and PCBs) are heated to a temperature sufficient to melt the solder. Upon cooling and solidification, these components form a permanent electrical and mechanical connection through the solidified solder.

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

The Hot Bar Soldering Controller utilizes pulse heating technology with PID closed-loop control algorithm for instant heating and cooling. This significantly enhances the efficiency of hot bar reflow soldering. The localized and instantaneous heating method employed in hot bar reflow soldering effectively controls the heat impact on surrounding components, without affecting the performance of neighboring components already installed around the soldering area.

The Hot Bar Soldering Controller features the capability to store 5 sets of programs, with each set containing 3 parameter groups. This enables easy switching between stored parameter sets for different hot bar reflow soldering tasks, eliminating the need for repetitive reconfiguration of soldering parameters. Moreover, each parameter group can be configured with 4 distinct heating profiles, accommodating the user's demand for multi-stage heating.

Specification Table for Hot Bar Soldering Controller

Product name Hot Bar Soldering Controller
Model HN-3000
Rated voltage AC 200V~240V 50Hz
The output voltage AC 3.8V
Rated power 3000W
Thermocouple type Type E, Type K
Heating temperature set range 50~600℃
Communication Interface RS-485, Ethernet

Number of program groups

5 groups

Number of parameter groups

3 groups

Number of temperature segments

4 segments

Parameter password

7- inch true color touch screen

Weight ( excluding wiring ) 22 kg

External dimensions ( mm )

245 x 314 x 229
Attention: Parameter changes caused by product upgrades or other factors will not be notified separately. The physical product shall prevail. Hereby declared!

Examples of Hot Bar Soldering Controller Applications

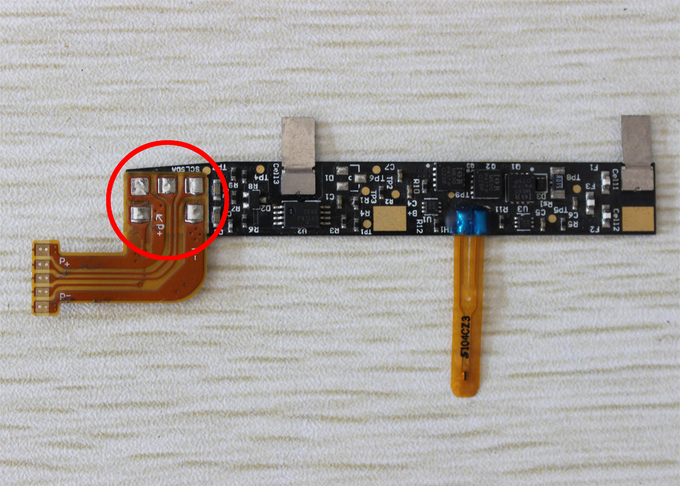

Hot Bar Reflow Soldering for FPC-to-FPC Connections

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

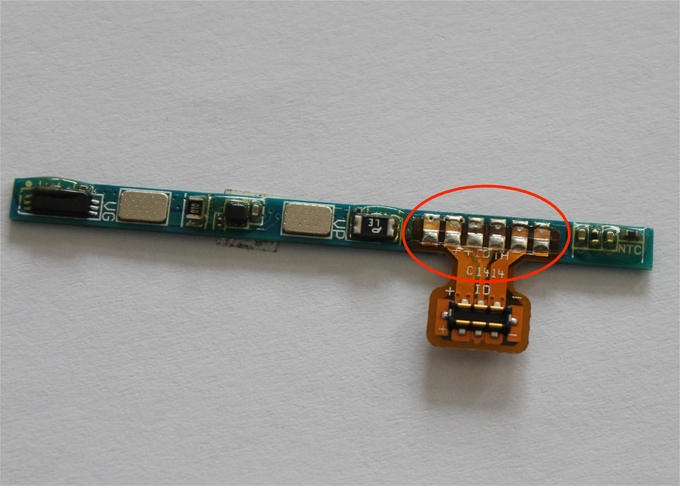

Hot Bar Reflow Soldering for FPC-to-PCB Connections

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB

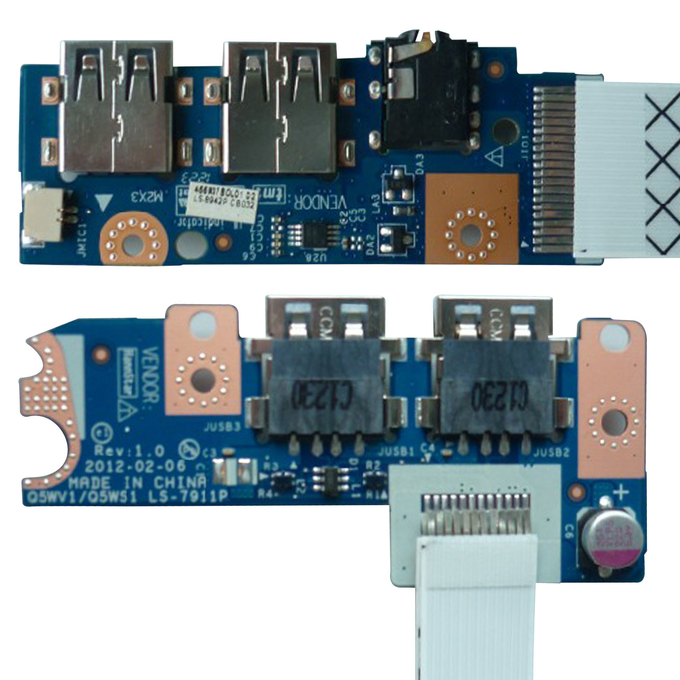

Hot Bar Reflow Soldering for FFC-to-PCB Connections

Hot Bar Soldering Controller for Soldering FPC or FFC onto PCB
